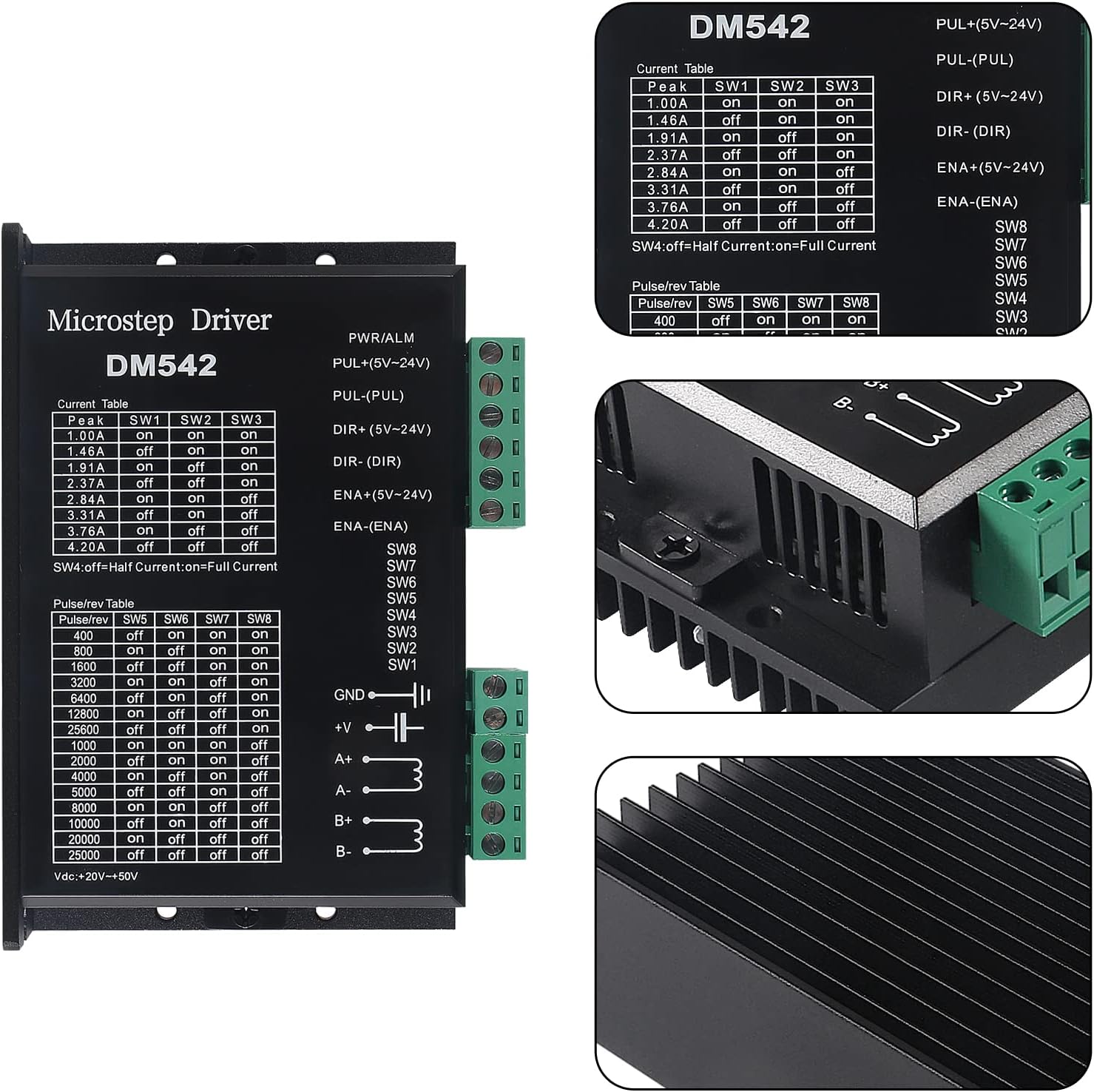

2Pack CNC Digital Microstep Driver DM542 2-Phase Stepper Motor Driver 20-50V DC Max 4.2A for Nema 17, Nema 23 and Nema 34 Series Stepper Motor, Replace M542 M542H

DescriptionThis Leadshine DM542 is an advanced motor driver controller, it uses the most advanced DSP control algorithm. Compared with other traditional stepper motor drivers, it has less noise, less thermal power and smoother drive processSpecification:Model: DM542Input voltage: 18- 48VDC, 36V(Typical)Output current: 1.0-4.2APulse response frequency: 200kHz(Max)Insulation resistance: 500MO Subdivision range: 400~ 256oopprWeight: Approx.268g / 9.40ZPackage:2 * DM542 Steeper Motor Driver

• This steeper motor driver has high practicality, which fits for 42/57 stepper motor and can be widely used in automatic packaging machine, engraving machine and other automation equipments.
• Suitable for Nema 17, Nema 23 and Nema34 Stepper Motor，2-phase hybrid stepper motors (Outer diameter: 42, 57,86mm).
• The DM542 digital stepper motor driver adopts the latest 32-bit DSP technology, suitable for driving 57 and 86 series motors.
• Stable running and low noise under medium-low speed, and precise current control greatly reduces the motor heat.
• Package: 2piece DM542
